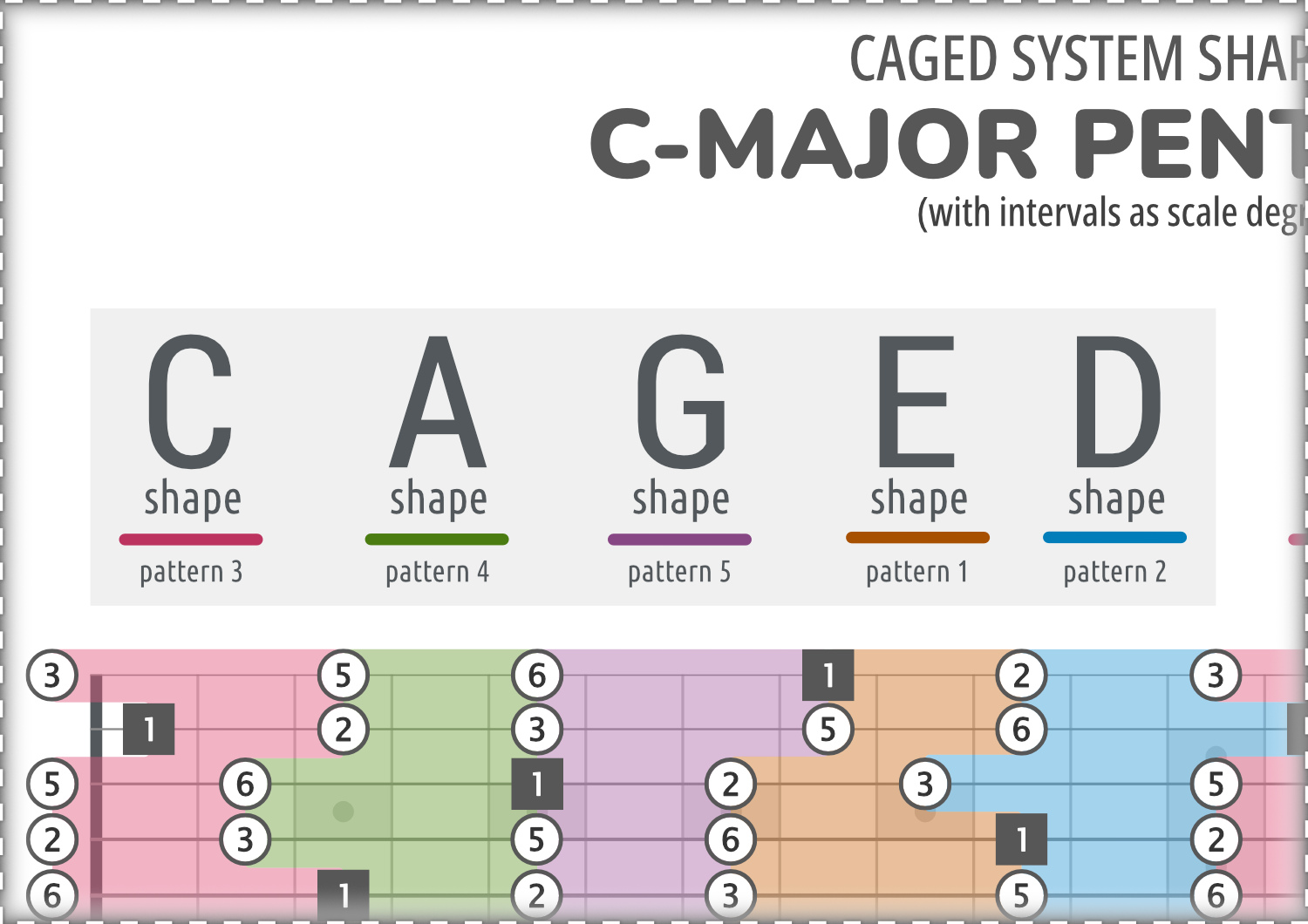

Charts to help you visualize how each of the 5 CAGED shapes of C-Major pentatonic scale connects to the next one like a puzzle.

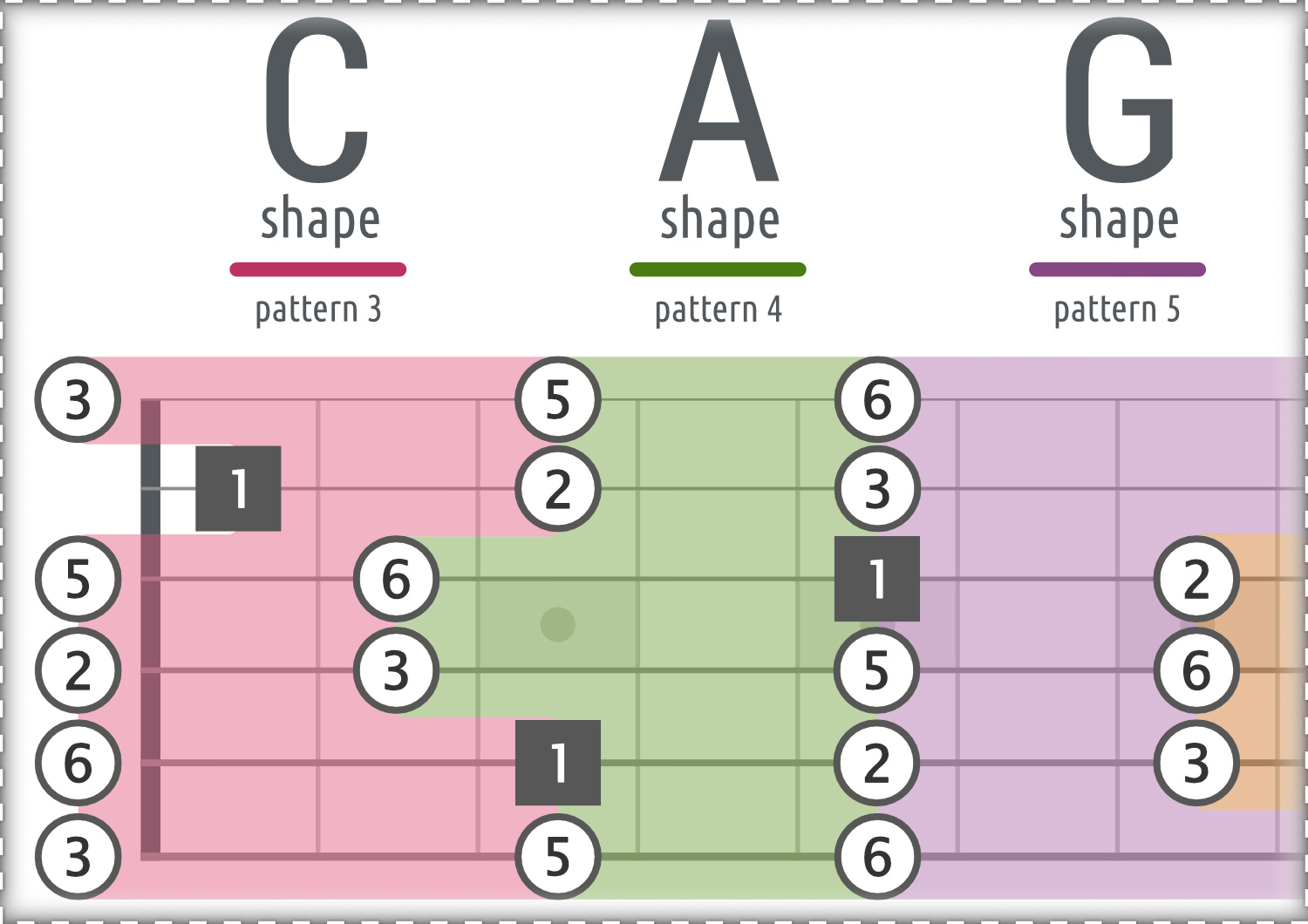

Comes in 2 flavors: 13 frets and 22 frets. 13-fret version highlights the 5 CAGED shapes without repetition and takes as much horizontal space of the page as possible to appear big and bold while the other one features CAGED shapes across the entire fretboard, repeating all 5 patterns almost twice and thus unlocking all shapes' connection points and not just in the first half of the fretboard.
The numbers inside the circles and squares represent intervals (scale degrees relative to the major scale). Root tones have a stronger visual emphasis to provide soloing landmarks and a better overview of the shape's primary "anchor points" to help you memorize and internalize all 5 patterns.
Pro tip: since these diagrams have relative degrees (intervals) instead of concrete note names you can view this chart as a recipe for any major pentatonic scale, not just C-Major, the shapes will be identical for all major pentatonic scale roots.
For example, to get CAGED shapes for the G-Major pentatonic scale you just need to align the E-shape's (pattern 1) root tone with the 3rd fret of the lowest 6th string (you can also align the G-shape with the 3rd fret of the 6th string, but then you'll have to play the pattern with open strings—not that you have to avoid it, but I'm just saying).
CAGED shapes are always ordered as the CAGED-word is spelled. So for our G-Major pentatonic example the next shape towards the guitar's bridge would be the D-shape (after E), and the previous shape towards the guitar's nut would be the G-shape.
These relative scale degrees (or intervals) may help transform your entire approach to soloing. How? You no longer look at a "pool" of notes to choose from—instead, you focus on specific tones that add specific color to your playing. That is only possible if you are aware of what relative degree you are playing and what effect each of its intervals has to the underlying harmony. And this is exactly what these diagrams can help you with.
Notice that the C-shape on the 12th fret repeats the C-shape of the 0-fret (i.e. open C-shape built from the nut of the guitar). CAGED is a 5-pattern system—the whole series of patterns repeat every 5 patterns, like a loop, and the second diagram shows that very clearly.
Why is this relevant?
Well, that tells you that you don't need to memorize notes across all 24 frets of the guitar fretboard—you just need to learn what's in the 1st half (12 frets) of the fretboard and the 2nd half mirrors the first one.
Furthermore, it tells you that this half is split into 5 distinct "slices"—not 4, not 8, but 5. So, the idea here is—the fewer patterns, the easier it is to memorize the scale(s) across the entire fretboard. Take your time to observe this for yourself on the full-fretboard version of this chart.
You've just downloaded a so-called .zip archive file. It's a way of conveniently distributing multiple files so you didn't have to download one by one. It contains several files inside but to view its content you need to extract (unzip) it.
Every modern operating system comes with a program that is capable of unpacking such archive files so you don't have to download, install and even open any additional software. Click on the downloaded file to invoke its context menu and look for Extract option. Click that and all files which reside in the zip file will be unarchived into a single directory to your device. Navigate to the extracted folder and look for the poster PDF.
Should you need any assistance with opening the file contact me and I will gladly help you out.
| Poster type | electronic |
|---|---|
| Poster language | English |
| Paper size format | A4 (ISO 216) |
| Poster, printable PDF | 2 pc |
|---|---|
| Poster, grayscale (B/W), printable PDF | 2 pc |
| Date added | August 2, 2022 |
|---|---|
| Date last updated | August 21, 2023 |
| Version | 1.1 |
